Taiwan's Secret Arsenal | Part 1: Inside the Factory Taiwan's Military Doesn't Talk About

The directions seem almost deliberately unremarkable. Take the main road through Hsinchu Science Park, turn past the TSMC campus, continue for roughly 450 meters. The building you're looking for doesn't announce itself. There's no security checkpoint visible from the street, no uniformed guards, no signage that would catch a visitor's eye. Walk through the front door and you find a soaring lobby, a staff coffee bar, the low murmur of an ordinary office. Nothing here signals that this is one of the most sensitive defense facilities in Taiwan.

Then you go upstairs.

The company isZyxel Technology (合勤科技)— better known internationally for the home routers and network switches that bear its name. But tucked inside its Hsinchu headquarters, behind access doors that require a different keycard from the rest of the building, is what employees refer to only as the "mysterious floor." It is here, in a production facility a three-minute walk from the main lobby, that Zyxel manufactures the electronic warfare systems, missile guidance components, and military communications equipment that supply all three branches of Taiwan's armed forces. Workers on the production line assemble components by part number. Most of them do not know — and are deliberately not told — what those components are ultimately used for.

Storm Media was granted exclusive access to the facility: the first time Zyxel has allowed a media outlet inside its military production line.

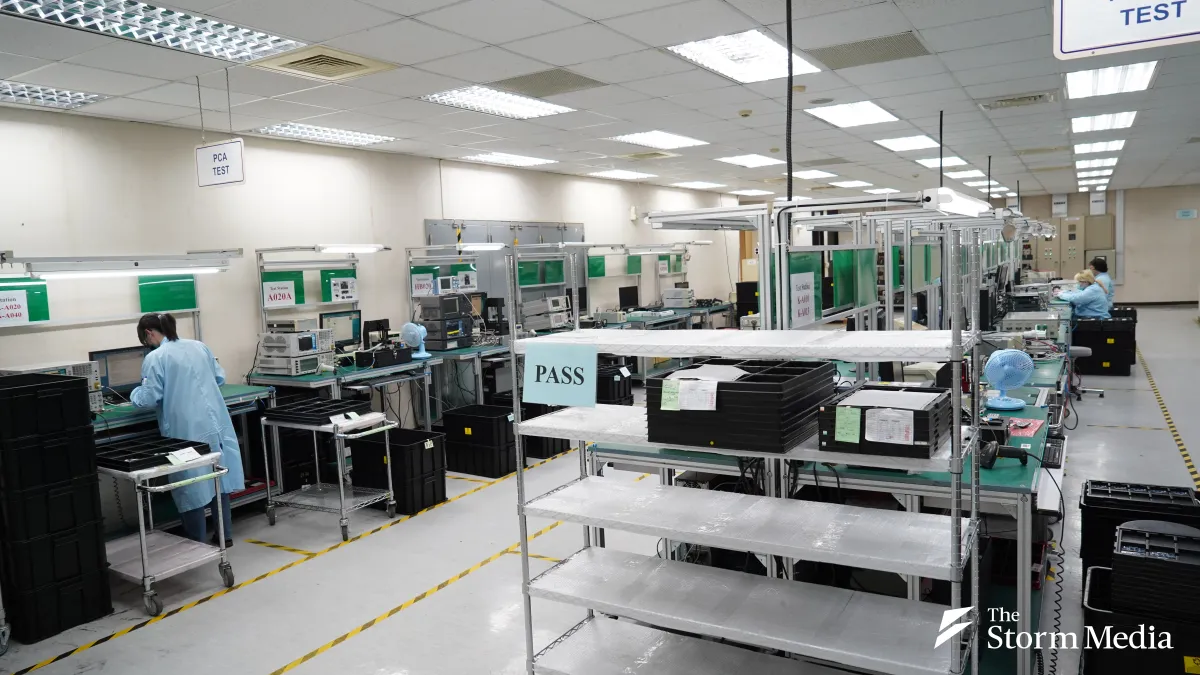

Entry to the production floor follows a ritual that immediately signals you have left the commercial world behind. Before stepping onto the line, every person — visitor or employee — must pull on an anti-static jumpsuit and fit plastic shoe covers over their footwear. The precautions serve a dual purpose: protecting sensitive electronics from electrostatic discharge, and maintaining the cleanliness standards that military specifications demand. The floor is bright, almost clinical. The wall directly inside the entrance carries a large laminated chart: the military production standard operating procedure, every step numbered, every checkpoint marked.

"There is always a quality assurance officer on the line," said Lin Chia-wen (林嘉雯), a senior manager who oversees the facility. "Every product follows the process. No exceptions."

The discipline here is categorically different from what happens in commercial electronics manufacturing — and the differences become apparent the moment production begins. Two processes in particular set military-grade work apart: chemical washing and sealant coating.

The washing process sounds deceptively simple. In practice, it involves proprietary chemical solvents that strip microscopic contaminants from circuit board surfaces — particles that commercial manufacturing tolerates but that can cause failure in the extreme environments military hardware must survive. The washing area is off-limits to cameras; its procedures are classified. What Storm Media could observe was the automation: machines moving components through chambers in a sequence so controlled that individual human decisions have been largely removed from the equation.

Sealant coating follows testing. Automated applicators trace precise patterns across finished boards, depositing a moisture-resistant layer that will protect the electronics against humidity, salt air, and chemical exposure during field use. Military specifications require it. Commercial products don't bother.

"Only military products go through the wash process," said Chu Shun-i (朱順一), Zyxel's chairman. "Commercial manufacturing doesn't need corrosion resistance, moisture resistance, chemical resistance. Military does."

The production floor operates on a principle of deliberate compartmentalization. Assembly workers receive part numbers and instructions. They execute procedures. They understand, in general terms, that they are contributing to national defense products. But the specific identity of what they are building — which weapons system, which platform, which branch of service — is withheld from them by design.

The logic is straightforward: the fewer people who hold complete knowledge of any given system, the smaller the surface area for intelligence leakage. Taiwan's defense industrial base operates under constant pressure from Chinese state-sponsored espionage, and Zyxel's position as a supplier of critical missile and electronic warfare components makes it an especially attractive target. Compartmentalization is not bureaucratic caution. It is operational security.

For the engineers who do hold complete knowledge — the designers, the systems integrators, the senior technical staff — the constraints go considerably further.

Zyxel's military-division engineers occupy a legal category that has no real equivalent in civilian corporate life. Under Taiwan's defense regulations, they are classified as controlled personnel: a status that imposes obligations normally associated with military service. They are barred from traveling to mainland China. International travel requires advance notification to authorities. They hold security clearances and are bound by non-disclosure agreements with no expiration date.

"For the senior staff, it's different," Chu said. "They've been doing this for years. They see it as an obligation — to the company and to the country. They don't feel constrained by it."

The engineers who form the technical core of Zyxel's defense operation are, in many cases, former researchers from the National Chung-Shan Institute of Science and Technology — Taiwan's primary defense research body, universally known by its acronym CSIST. They spent their careers working on classified programs. The culture of controlled disclosure is not new to them. It is simply the continuation of a professional ethos they brought with them when they joined Zyxel.

Complete the production process, and the work is still not finished. It has barely begun.

Back on the ground floor of the main building, past the coffee bar and through another secured door, lies what Lin calls the second "mysterious space": an accredited testing laboratory certified by TAF, Taiwan's sole internationally recognized accreditation authority. The laboratory is certified across three domains — temperature, vibration, and shock — each corresponding to a specific category of operational stress that military hardware must survive.

The temperature chambers are the most immediately striking. Rows of large cabinet-sized machines line the walls, each capable of holding components across a wide temperature range for extended periods. The standard military test cycle runs 72 hours. But the specification that makes Zyxel's chambers unusual — and, according to Chu, unique in Taiwan among military-certified facilities — is the rate of temperature change.

Commercial temperature testing chambers are common. What they cannot do is cycle temperature at 15 degrees Celsius per minute, in both directions. Military specifications require this capability because it replicates a specific operational scenario: a missile launched from high altitude descending to its target at the surface. The thermal shock of that transition — from the cold of altitude to the heat of low-level flight, in a matter of seconds — places extraordinary stress on electronic components. If a signal processor cannot survive that transition while continuing to function, the missile misses.

"Raising temperature at 15 degrees per minute is manageable," Chu said. "Dropping 15 degrees per minute is much harder. That's the physics of a missile coming down from altitude. The chambers are very expensive, and they need a lot of space. Right now, Zyxel is the only company in Taiwan doing military-grade production with this capability."

Alongside the thermal chambers, the laboratory houses a custom-built atmospheric pressure fixture developed entirely in-house. For equipment designed to operate underwater or in sealed environments, the machine uses air pressure differentials to verify the integrity of each unit's sealing. A green indicator means the unit passed. A red light means something — a microscopic crack, a poorly seated component, a compression error on the assembly line — has compromised the seal. The fixture was designed and built by Zyxel's own engineers because nothing commercially available met the specification they needed.

The final station requires the most unusual infrastructure of all: a basement parking garage.

Vibration testing — the last mandatory stage before any military component is cleared for delivery — cannot be conducted above ground. The machines that generate the required forces operate at intensities that would transmit through a building's structure, disturbing everything and everyone above. The noise alone makes occupied floors untenable. So Zyxel's vibration test equipment lives in the basement, bolted to the concrete slab of what would otherwise be a parking level, isolated by mass and depth from the rest of the facility.

The machines simulate every operational environment in which Zyxel's products might find themselves: vehicle-mounted ground equipment absorbing road shock, shipboard installations subjected to wave action, airborne systems enduring the vibration profiles of fixed-wing aircraft and rotorcraft. For equipment destined for fighter platforms, the test replicates gunfire vibration — the shock transmitted through an airframe when its cannons fire.

"Military vibration specifications typically require tolerances above 6G," Lin noted. "Commercial standards are around 3G. You can't run these machines on an upper floor. The whole structure would shake."

When the vibration tests are complete — after the chemical wash, the sealant coat, the 72-hour thermal cycle, the pressure test, and the shock testing — a military component from Zyxel is considered finished. Each of those stages is mandatory. None can be skipped. The process that began with an engineer reviewing a part number on an assembly line has ended with a component that has been subjected to conditions most electronics never encounter.

Standing on the production floor, it is easy to lose sight of what is actually being made here. The environment is orderly, well-lit, almost quiet. Workers move methodically between stations. Machines hum. Nothing looks like war.

But the products leaving this building will end up inside missiles, on naval vessels, in the cockpits of fighter aircraft, in the hands of soldiers operating electronic jamming systems along Taiwan's coastline. The people assembling them, for the most part, will never know exactly where their work went. The engineers who designed those products have agreed, in writing and under law, never to discuss them.

Taiwan sits at the edge of one of the world's most consequential strategic fault lines. The question of whether it can defend itself is debated in capitals from Washington to Beijing to Brussels. What rarely enters those debates is the industrial reality underneath — the production lines, the testing chambers, the classified floor plans, the engineers who accepted constraints on their freedom of movement as a condition of their employment.

Zyxel's mysterious floor is part of that reality. It is unglamorous, methodical, and almost entirely invisible to the outside world. That, by design, is exactly the point.
